JARA2i.CaseStudies.batchReactor.Ejs

Information

Modelica model of the batch reactor to be used in a virtual lab implemented in combination with Ejs and Matlab/Simulink

References

Martin, C. and A. Urquia and S. Dormido (2005): Object-Oriented Modeling of Virtual Laboratories for Control Education. Proceedings of the 16^th IFAC World Congress, paper code: Th-A22-TO/2.

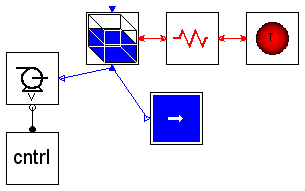

JARA2i.CaseStudies.batchReactor.Ejs.batchReacLiqAtoPInteractive

Parameters

Type	Name	Default	Description
Integer	nComp	3	Component number of the liqid mixture
Integer	numChR	1	Number of irreversible chemical reactions
Boolean	Ejs	true
Boolean	Sysquake	false
Real	CpCoefMInitial[nComp, 7]	[4.5E3, 0, 0, 0, 0, 0, 0; 4....	[J/(Kg*K)]
Real	massEnthalpyRefInitial[nComp]	{167E4,0,0}	Specific (per mass) enthalpy at reference temperature [J/Kg]
Real	tempRefInitial	300	Reference temperature [K]
Real	molecWeightInitial[nComp]	{0.1,0.018,0.1}	Molecular weight [Kg/mol]
Real	densityInitial[nComp]	{1E3,1E3,1E3}	Components density [Kg/m3]
Real	vesselVinitial	5	Initial reactor volume [m3]
Real	vesselSinitial	3	Initial reactor section [m2]
Real	stoichCoefInitial[numChR, nComp]	[-1, 0, 1]	Stoich coeffs.
Real	kCoefInitial[2]	{4E6,-7.9E3}	Reaction velocity coeffs. [{s-1,K}]
Real	heatExchAreaInitial	3.3	Exchanger area [m2]
Real	hTSteamInitial	1360	Heat-transfer coeff. of the vapor [W/(m2.K)]
Real	hTWaterInitial	1180	Heat-transfer coeff. of the water [W/(m2.K)]
Real	tempSteam	393	Vapor temperature [K]
Real	tempWater	288	Water temperature [K]
Real	pmax	1.05*3*vesselVinitial*liq.li...
Real	pcodo	pmax/1.05	Source parameter
Real	pmin	1	Source parameter
Real	peps	0.2	Source parameter
Real	massLinitial[:]	{0,1,0}	Initial condition [M]
Real	tempLinitial	300	Initial condition [T]

Modelica definition

model batchReacLiqAtoPInteractive "Reactor interactive model"

  // Physical model
  extends PhysicalModel.batchReacLiqAtoP;

  // Interface
  input Real Iparam[7];
  input Real Ivar[10];
  input Real Istate[4];

  input Real CKparam;
  input Real CKvar;
  input Real CKstate;

  output Real O[21];
  output Real Release;

protected
  Boolean CKparamIs0( start = true, fixed=true);
  Boolean CKvarIs0(   start = true, fixed=true);
  Boolean CKstateIs0( start = true, fixed=true);

equation
  // Model release
  // -------------
  {Release}       = {1.0};

  // Interactive change of the parameters
  // ------------------------------------
  when CKparam           > 0.5 and     pre(CKparamIs0) or CKparam
                         < 0.5 and not pre(CKparamIs0) then

    CKparamIs0 =CKparam            < 0.5;

    reinit(liq.vessel.vesselVolume,Iparam[1]);
    reinit(liq.liquid.section,Iparam[2]);

    reinit(resistTherm.hTSteam,Iparam[3]);
    reinit(resistTherm.hTWater,Iparam[4]);
    reinit(resistTherm.heatExchArea,Iparam[5]);

    reinit(chRAtoP.kCoef[1],Iparam[6]);
    reinit(chRAtoP.kCoef[2],Iparam[7]);

  end when;

  // Interactive change of the input variables
  // -----------------------------------------
  when CKvar           > 0.5 and     pre(CKvarIs0) or CKvar
                       < 0.5 and not pre(CKvarIs0) then

    CKvarIs0 =CKvar            < 0.5;

    reinit(resistTherm.isHeater,Ivar[1]);
    reinit(fluidTemp.isHeater,Ivar[1]);

    reinit(resistTherm.isChiller,Ivar[2]);
    reinit(fluidTemp.isChiller,Ivar[2]);

    reinit(fluidTemp.tempHeat,Ivar[3]);
    reinit(fluidTemp.tempCool,Ivar[4]);

    reinit(sourceLiqCtrl.flowVSP,        -Ivar[5]);          // Positivo: llena el deposito
    reinit(sourceLiqCtrl.tempSP,Ivar[6]);
    reinit(sourceLiqCtrl.fractVSP[1],Ivar[7]);
    reinit(sourceLiqCtrl.fractVSP[2],Ivar[8]);
    reinit(sourceLiqCtrl.fractVSP[3],Ivar[9]);

    reinit(chRAtoP.calcConversion,Ivar[10]);

  end when;

  // Interactive change of the state variables
  // -----------------------------------------
  when CKstate           > 0.5 and     pre(CKstateIs0) or CKstate
                         < 0.5 and not pre(CKstateIs0) then

    CKstateIs0 =CKstate            < 0.5;

    reinit(liq.liquid.massL[1],Istate[1]);
    reinit(liq.liquid.massL[2],Istate[2]);
    reinit(liq.liquid.massL[3],Istate[3]);
    reinit(liq.liquid.tempL,Istate[4]);

  end when;

  // Output variables
  // ----------------
  O        = {
             liq.liquid.massL[1], liq.liquid.massL[2], liq.liquid.massL[3], liq.liquid.tempL,
             liq.liquid.liqHeight, liq.liquid.fluidV,
             fluidTemp.sourceTemp, fluidTemp.consumHeater, fluidTemp.consumChiller,
             fluidTemp.isHeater, fluidTemp.isChiller,
             -liqSource.inMass.massLF[1], -liqSource.inMass.massLF[2], -liqSource.inMass.massLF[3],
             -liqSource.totalMassF, liqSource.tempF,
             -chRAtoP.inMass.massLF[1], -chRAtoP.inMass.massLF[2], -chRAtoP.inMass.massLF[3],
             chRAtoP.conversion, chRAtoP.reactionRate[1]};

end batchReacLiqAtoPInteractive;
