tankProcessLAB.caseStudies.quadrupleTank

Information

Quadruple Tank Process

Package Content

Name	Description
interactiveModel	Interactive model
physicalModel	Physical model
setParamVar	Model including the when required to change the value of the interactive parameters and input variables
StateSelection1	State variables: liquid level
StateSelection2	State variables: liquid volume

tankProcessLAB.caseStudies.quadrupleTank.interactiveModel

Modelica definition

model interactiveModel "Interactive model"
  input Real Iparam[25] "New value of the interactive parameters";
  input Real Ivar[2] "New value of the interactive variables";
  input Real Istate[8] "New value of the state variables";

  input Real CKparam[2]
    "Trigger the when that reinitializes the value of the interactive parameters";
  input Real CKvar[2]
    "Trigger the when that reinitializes the value of the interactive variables";
  input Real CKstate[2]
    "Trigger the when that reinitializes the value of the state variables";

  input Real Enabled[2];

  output Real O[16] "Ouput variable";
  output Real Release[1] "Release signal";

  StateSelection1 SS1( CKparam = CKparam[1],
                       CKvar =   CKvar[1],
                       CKstate = CKstate[1]);

  StateSelection2 SS2( CKparam = CKparam[2],
                       CKvar =   CKvar[2],
                       CKstate = CKstate[2]);
equation
  Iparam = SS1.Iparam;
  Istate = SS1.Istate;
  Ivar = SS1.Ivar;

  Iparam = SS2.Iparam;
  Istate = SS2.Istate;
  Ivar = SS2.Ivar;

  Release = {9.0};

  O = if Enabled[1] > 0.5 then
                  SS1.O else
                  if Enabled[2] > 0.5 then
                       SS2.O else
                       zeros(size(O, 1));

end interactiveModel;

tankProcessLAB.caseStudies.quadrupleTank.physicalModel

Parameters

Type	Name	Default	Description
Boolean	isState[8]		Vector controlling the state selection

Modelica definition

partial model physicalModel "Physical model"

  input Real Iparam[25] "New value of the interactive parameters";
  input Real Ivar[2] "New value of the interactive variables";
  input Real Istate[8] "New value of the state variables";

  output Real O[16] "Output vector";

  parameter Boolean[8] isState "Vector controlling the state selection";

  componentsLIB.tank tank1(hIsState=isState[1], volumeIsState=isState[5]);
  componentsLIB.tank tank2(hIsState=isState[2], volumeIsState=isState[6]);
  componentsLIB.tank tank3(hIsState=isState[3], volumeIsState=isState[7]);
  componentsLIB.tank tank4(hIsState=isState[4], volumeIsState=isState[8]);

  componentsLIB.sink sink;

  componentsLIB.pipe pipeT3T1(FIsState=false);
  componentsLIB.pipe pipeT1Sink(FIsState=false);
  componentsLIB.pipe pipeT4T2(FIsState=false);
  componentsLIB.pipe pipeT2Sink(FIsState=false);

  componentsLIB.pumpTwoWayValve pumpValve1;
  componentsLIB.pumpTwoWayValve pumpValve2;
equation

  connect(tank1.portBottom, pipeT1Sink.portP);
  connect(pipeT1Sink.portN, sink.port);
  connect(tank1.portTop, pumpValve1.port1);
  connect(tank1.portTop, pipeT3T1.portN);

  connect(tank2.portBottom, pipeT2Sink.portP);
  connect(pipeT2Sink.portN, sink.port);
  connect(tank2.portTop, pumpValve2.port1);
  connect(tank2.portTop, pipeT4T2.portN);

  connect(tank3.portBottom, pipeT3T1.portP);
  connect(tank3.portTop, pumpValve2.port2);

  connect(tank4.portBottom, pipeT4T2.portP);
  connect(tank4.portTop, pumpValve1.port2);

  O = {tank1.h,tank2.h,tank3.h,tank4.h,pipeT3T1.F,pipeT1Sink.F,pipeT4T2.
    F,pipeT2Sink.F,tank1.volume,tank2.volume,tank3.volume,tank4.volume,
    -pumpValve1.port1.volFlow, -pumpValve2.port1.volFlow,
    -pumpValve2.port2.volFlow, -pumpValve1.port2.volFlow};
end physicalModel;

tankProcessLAB.caseStudies.quadrupleTank.setParamVar

Parameters

Type	Name	Default	Description
Boolean	isState[8]		Vector controlling the state selection

Modelica definition

model setParamVar
  "Model including the when required to change the value of the interactive parameters and input variables"
  extends physicalModel;
  Real CKparam
    "Trigger the when that reinitializes the value of the interactive parameters";
  Real CKvar
    "Trigger the when that reinitializes the value of the interactive variables";
protected
  Boolean CKparamIs0( start = true, fixed=true);
  Boolean CKvarIs0(   start = true, fixed=true);
equation
  when CKparam > 0.5 and     pre(CKparamIs0) or
       CKparam < 0.5 and not pre(CKparamIs0) then

    CKparamIs0 = CKparam < 0.5;

    reinit(pumpValve1.gamma, Iparam[1]);
    reinit(pumpValve1.k,     Iparam[2]);

    reinit(pumpValve2.gamma, Iparam[3]);
    reinit(pumpValve2.k,     Iparam[4]);

    reinit(tank1.tankSection, Iparam[5]);
    reinit(tank2.tankSection, Iparam[6]);
    reinit(tank3.tankSection, Iparam[7]);
    reinit(tank4.tankSection, Iparam[8]);

    reinit(pipeT3T1.a,   Iparam[9]);
    reinit(pipeT1Sink.a, Iparam[10]);
    reinit(pipeT4T2.a,   Iparam[11]);
    reinit(pipeT2Sink.a, Iparam[12]);

    reinit(tank1.alfa1, Iparam[13]);
    reinit(tank2.alfa1, Iparam[14]);
    reinit(tank3.alfa1, Iparam[15]);
    reinit(tank4.alfa1, Iparam[16]);

    reinit(tank1.alfa2, Iparam[17]);
    reinit(tank2.alfa2, Iparam[18]);
    reinit(tank3.alfa2, Iparam[19]);
    reinit(tank4.alfa2, Iparam[20]);

    reinit(tank1.beta, Iparam[21]);
    reinit(tank2.beta, Iparam[22]);
    reinit(tank3.beta, Iparam[23]);
    reinit(tank4.beta, Iparam[24]);

    tank1.generateEvents = Iparam[25] > 0.5;
    tank2.generateEvents = Iparam[25] > 0.5;
    tank3.generateEvents = Iparam[25] > 0.5;
    tank4.generateEvents = Iparam[25] > 0.5;
  end when;

  when CKvar > 0.5 and     pre(CKvarIs0) or
       CKvar < 0.5 and not pre(CKvarIs0) then

    CKvarIs0 = CKvar < 0.5;

    reinit(pumpValve1.v, Ivar[1]);
    reinit(pumpValve2.v, Ivar[2]);

  end when;

end setParamVar;

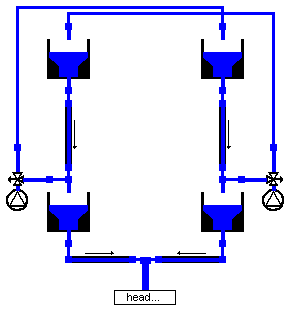

tankProcessLAB.caseStudies.quadrupleTank.StateSelection1

Parameters

Type	Name	Default	Description
Boolean	isState[8]		Vector controlling the state selection

Modelica definition

model StateSelection1 "State variables: liquid level"
  extends setParamVar(isState={true,true,true,true,false,false,false,false});
  Real CKstate
    "Trigger the when that reinitializes the value of the state variables";
protected
  Boolean CKstateIs0( start = true, fixed=true);
equation

  when CKstate > 0.5 and     pre(CKstateIs0) or
       CKstate < 0.5 and not pre(CKstateIs0) then

    CKstateIs0 = CKstate < 0.5;

    reinit(tank1.h, Istate[1]);
    reinit(tank2.h, Istate[2]);
    reinit(tank3.h, Istate[3]);
    reinit(tank4.h, Istate[4]);
  end when;
end StateSelection1;

tankProcessLAB.caseStudies.quadrupleTank.StateSelection2

Parameters

Type	Name	Default	Description
Boolean	isState[8]		Vector controlling the state selection

Modelica definition

model StateSelection2 "State variables: liquid volume"
  extends setParamVar(isState={false,false,false,false,true,true,true,true});
  Real CKstate;
protected
  Boolean CKstateIs0( start = true, fixed=true);
equation

  when CKstate > 0.5 and     pre(CKstateIs0) or
       CKstate < 0.5 and not pre(CKstateIs0) then

    CKstateIs0 = CKstate < 0.5;

    reinit(tank1.volume, Istate[5]);
    reinit(tank2.volume, Istate[6]);
    reinit(tank3.volume, Istate[7]);
    reinit(tank4.volume, Istate[8]);
  end when;
end StateSelection2;
