tankProcessLAB.caseStudies.threeTanks

Information

Three-tank Process

Package Content

Name	Description
physicalModel	Physical model
setParams	Model including the when required to change the value of the interactive parameters and input variables
StateSelection1	State variables: liquid level
StateSelection2	State variables: liquid volume
interactiveModel	Interactive model

tankProcessLAB.caseStudies.threeTanks.physicalModel

Parameters

Type	Name	Default	Description
Boolean	isState[6]

Connectors

Type	Name	Description
InPort	Iparam
InPort	Istate
OutPort	O

Modelica definition

model physicalModel "Physical model"

  Boolean triggerInter=CK > 0.5;
  Real CK;

  Modelica.Blocks.Interfaces.InPort Iparam(n=22);
  Modelica.Blocks.Interfaces.InPort Istate(n=6);
  Modelica.Blocks.Interfaces.OutPort O(n=13);
  parameter Boolean[6] isState;

  componentsLIB.tank2Ouputs tank1( hIsState=isState[1], volumeIsState=isState[4]);
  componentsLIB.tank2Ouputs tank3( hIsState=isState[3], volumeIsState=isState[6]);
  componentsLIB.tank2Ouputs tank2( hIsState=isState[2], volumeIsState=isState[5]);

  componentsLIB.valve valve13;
  componentsLIB.valve valve23;

  componentsLIB.valve valve2;
  componentsLIB.valve valve1;

  componentsLIB.flowSource flowSource1;
  componentsLIB.flowSource flowSource2;

  componentsLIB.valve valveL1;
  componentsLIB.valve valveN3;
  componentsLIB.valve valveN2;

  componentsLIB.sink sink1;

equation
  connect(flowSource1.port, tank1.portTop);
  connect(tank1.portBottom, valveL1.portP);
  connect(valveL1.portN, valveN3.portN);
  connect(valveN2.portN, valveN3.portN);
  connect(valveN3.portN, sink1.port);
  connect(tank2.portBottom, valveN2.portP);
  connect(tank3.portBottom, valveN3.portP);
  connect(valve23.portN, tank3.portBottom);
  connect(tank2.portBottom, valve23.portP);
  connect(valve13.portN, tank3.portBottom);
  connect(tank1.portBottom, valve13.portP);
  connect(flowSource2.port, tank2.portTop);
  connect(valve2.portP, tank2.portMiddle);
  connect(tank3.portMiddle, valve2.portN);
  connect(tank1.portMiddle, valve1.portP);
  connect(valve1.portN, tank3.portMiddle);

  O.signal = {tank1.h,tank2.h,tank3.h,
              tank1.volume,tank2.volume,tank3.volume,
              valve1.F,valve2.F,valve13.F,valve23.F,valveL1.F,valveN3.F,valveN2.F};

end physicalModel;

tankProcessLAB.caseStudies.threeTanks.setParams

Parameters

Type	Name	Default	Description
Boolean	isState[6]

Connectors

Type	Name	Description
InPort	Iparam
InPort	Istate
OutPort	O

Modelica definition

model setParams
  "Model including the when required to change the value of the interactive parameters and input variables"
  extends physicalModel;
equation
  when triggerInter then
    reinit(flowSource1.flowSetPoint, Iparam.signal[1]);
    reinit(flowSource2.flowSetPoint, Iparam.signal[2]);

    reinit(tank1.tankSection, Iparam.signal[3]);
    reinit(tank2.tankSection, Iparam.signal[4]);
    reinit(tank3.tankSection, Iparam.signal[5]);

    reinit(tank1.hPortMiddle, Iparam.signal[6]);
    reinit(tank2.hPortMiddle, Iparam.signal[7]);
    reinit(tank3.hPortMiddle, Iparam.signal[8]);

    reinit(valve1.K, Iparam.signal[9]);
    reinit(valve1.S, Iparam.signal[10]);

    reinit(valve2.K, Iparam.signal[11]);
    reinit(valve2.S, Iparam.signal[12]);

    reinit(valve13.K, Iparam.signal[13]);
    reinit(valve13.S, Iparam.signal[14]);

    reinit(valve23.K, Iparam.signal[15]);
    reinit(valve23.S, Iparam.signal[16]);

    reinit(valveL1.K, Iparam.signal[17]);
    reinit(valveL1.S, Iparam.signal[18]);

    reinit(valveN2.K, Iparam.signal[19]);
    reinit(valveN2.S, Iparam.signal[20]);

    reinit(valveN3.K, Iparam.signal[21]);
    reinit(valveN3.S, Iparam.signal[22]);
  end when;
end setParams;

tankProcessLAB.caseStudies.threeTanks.StateSelection1

Parameters

Type	Name	Default	Description
Boolean	isState[6]

Connectors

Type	Name	Description
InPort	Iparam
InPort	Istate
OutPort	O

Modelica definition

model StateSelection1 "State variables: liquid level"
  extends setParams(isState={true,true,true,false,false,false});
equation
  when triggerInter then
    reinit(tank1.h, Istate.signal[1]);
    reinit(tank2.h, Istate.signal[2]);
    reinit(tank3.h, Istate.signal[3]);
  end when;
end StateSelection1;

tankProcessLAB.caseStudies.threeTanks.StateSelection2

Parameters

Type	Name	Default	Description
Boolean	isState[6]

Connectors

Type	Name	Description
InPort	Iparam
InPort	Istate
OutPort	O

Modelica definition

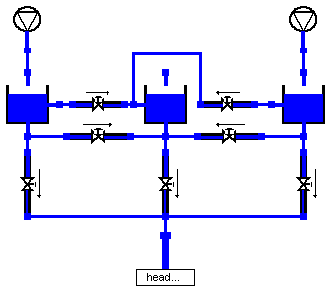

model StateSelection2 "State variables: liquid volume"
  extends setParams(isState={false,false,false,true,true,true});
equation
  when triggerInter then
    reinit(tank1.volume, Istate.signal[4]);
    reinit(tank2.volume, Istate.signal[5]);
    reinit(tank3.volume, Istate.signal[6]);
  end when;
end StateSelection2;

tankProcessLAB.caseStudies.threeTanks.interactiveModel

Connectors

Type	Name	Description
InPort	Iparam
InPort	Istate
InPort	CK
InPort	Enabled
OutPort	O
OutPort	Release

Modelica definition

model interactiveModel "Interactive model"
  Modelica.Blocks.Interfaces.InPort Iparam(n=22);
  Modelica.Blocks.Interfaces.InPort Istate(n=6);
  Modelica.Blocks.Interfaces.InPort CK(n=2);
  Modelica.Blocks.Interfaces.InPort Enabled(n=2);
  Modelica.Blocks.Interfaces.OutPort O(n=13);
  Modelica.Blocks.Interfaces.OutPort Release(n=1);

  StateSelection1 SS1(CK=CK.signal[1]);
  StateSelection2 SS2(CK=CK.signal[2]);
equation
  connect(Iparam, SS1.Iparam);
  connect(Istate, SS1.Istate);
  connect(Iparam, SS2.Iparam);
  connect(Istate, SS2.Istate);

  Release.signal = { 1.0};

  O.signal = if Enabled.signal[1] > 0.5 then
                  SS1.O.signal else
                  if Enabled.signal[2] > 0.5 then
                       SS2.O.signal else
                       zeros(size(O.signal, 1));

end interactiveModel;
