 System description
·
 Introduction
·
 Model
·
 View



Fig. 7.6: View of the virtual-lab.


System description

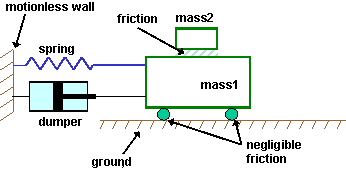

The mechanical system under study is shown in Fig. 7.37. It is composed of a spring, a dumper and two contacting bodies with friction.

Fig. 7.37: Schematic description of the mechanical system.

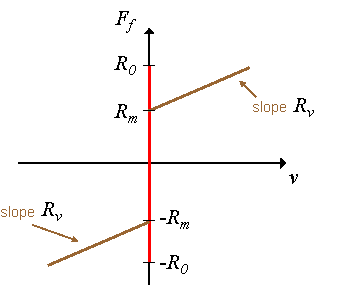

The constitutive relationship of the friction is shown in Fig. 7.38. The model considers the static and the dynamic friction.

Fig. 7.38: Constitutive relationship of the friction.
page top
Introduction

The introduction of the virtual-lab is shown in Fig. 7.39.

Fig. 7.39: Introduction of the virtual-lab.
page top
Model

The equations describing the model, with the computational causality analyzed, are shown below. The model can be in one of the following three modes: Backward, Forward and Stuck.

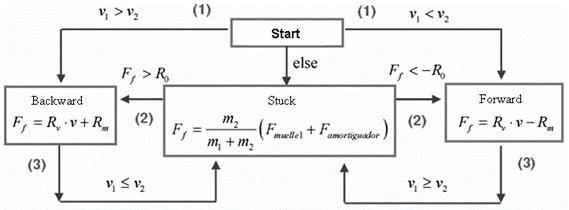

The switching among the system modes is shown in Fig 7.40. The numbers in brackets indicate the panel where the switching condition is written: (1) Initialization; (2) Constraints; and (3) Evolution.

Fig. 7.40: Switching among the modes.

page top
View

The tree of elements is shown in Fig. 7.41. Open the virtual-lab and look at the properties of the tree elements.

Fig. 7.41: Tree of elements.
